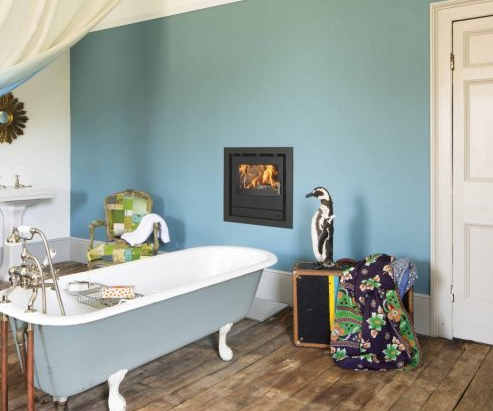

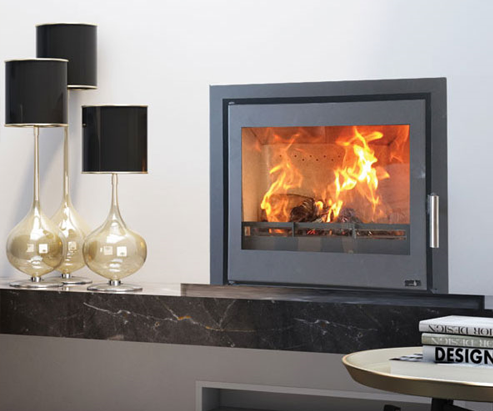

Ecoboiler Cassette

Details

Our all new cassette boiler offers the perfect combination of contemporary style and traditional boiler stove heating. This multi fuel boiler offers an alternative to our freestanding models with a wide viewing glass and modern look, combined with the latest in state-of-the-art technology and high performance. Available in any of our standard colours, a choice of frames and external air as standard, this stove is sure to provide an ideal heating solution for your home and hot water.

Features

7 year guarantee
Preheated airwash system for clean glass
Stainless steel ash pan and throat plate
Burns wood or solid fuel
Direct air supply compatible
Optional choice of trim size and trim colour
Externally controlled riddling grate
Discreetly positioned thermostatic control fitted as standard
Radiant heat and natural hot air convection
Suitable for installation in an indirect/open-vented central heating system
Up to 3 Bar operating pressure

Ecoboiler HE

Details

Providing more than just superior performance, the Ecoboiler HE (high efficiency) has a large fire door glass and soft curved lines, offering an attractive focal point for any living area.

Regardless of whether you burn wood or solid fuel, these boiler stoves have the technology to keep your home warm and cosy.

On top of its stylish appearance, discreet thermostatic control and three bar operating pressure, its ability to produce 50% more heat to water than other boiler stoves ensures the Ecoboiler is the ultimate heating companion.

Features

7 year guarantee
Easily accessible water sensor for trouble-free maintenance
Preheated airwash system for clean glass
Stainless steel ash pan and throat plate
Burns wood or solid fuel
Compact space-saving design
Discreetly positioned thermostatic control fitted as standard
'Easy Boost' system
Large, externally controlled riddling grate
Flue Exhaust Diversion system to improve performance
Primary and secondary burn to improve efficiency
Suitable for installation in an indirect/open-vented central heating system
Up to 3 Bar operating pressure
Top or rear flue outlet
Direct air supply compatible
Height adjusting legs as standard

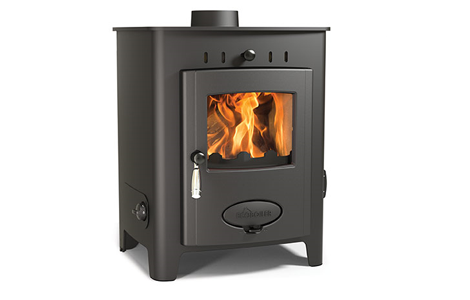

Ecoboiler 9 HE

Code	EB9HE-G5
Output	9kW
Energy Efficiency Class	A
Width	466mm
Height	570mm
Depth	417mm
Log length	280mm

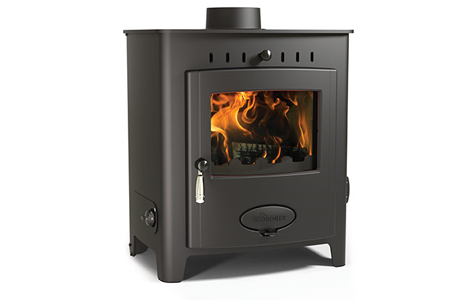

Ecoboiler 12 HE

Code	EB12HE-G5
Output	12.1kW
Energy Efficiency Class	A
Width	533mm
Height	603mm
Depth	412mm
Log length	350mm

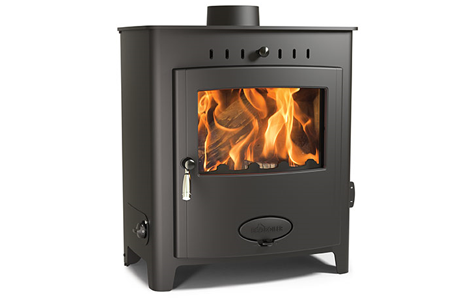

Ecoboiler 16 HE

Code	EB16HE-G5
Output	13.6kW
Energy Efficiency Class	A
Width	590mm
Height	659mm
Depth	402mm
Log length	405mm

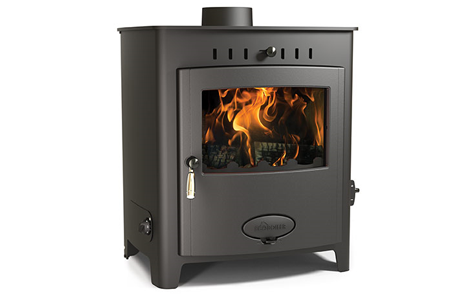

Ecoboiler 20 HE

Code	EB20HE-G5
Output	18kW
Energy Efficiency Class	A+
Width	590mm
Height	659mm
Depth	443mm
Log length	405mm

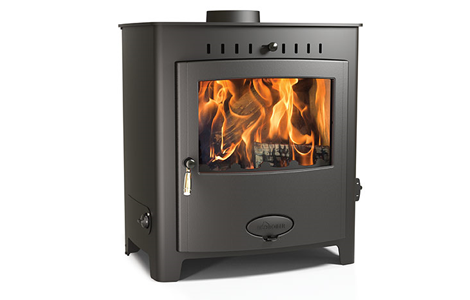

Ecoboiler 25 HE

Code	EB25HE-G5
Output	22.5kW
Energy Efficiency Class	A
Width	678mm
Height	725mm
Depth	498mm
Log length	450mm

Ecoboiler HE Inset

Details

The inset version of the Ecoboiler HE range provides high efficiency whilst fitting perfectly into a standard British fireplace opening. Featuring a large curved viewing glass, simple controls and the ultimate in state-of-the-art boiler stove technology, out inset Ecoboiler will transform any fireplace with its sophisticated style.

Features

7 year guarantee
Easily accessible water sensor for trouble-free maintenance
Preheated airwash system for clean glass
Burns wood or solid fuel
Stainless steel ash pan and throat plate
Compact space-saving design
Discreetly positioned thermostatic control fitted as standard
'Easy Boost' system
Large, externally controlled riddling grate
Fits into standard British fireplace opening
Flue Exhaust Diversion system to improve performance
Primary and secondary burn to improve efficiency
Suitable for installation in an indirect/open-vented central heating system
Up to 3 Bar operating pressure

Stoves in the Ecoboiler HE Inset range

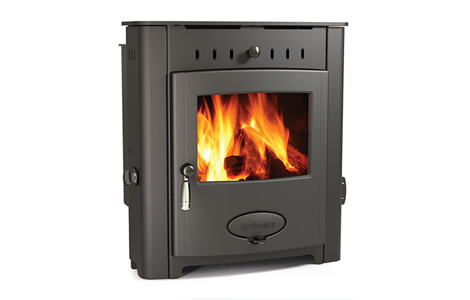

Ecoboiler 12 HE Inset

Code	EB12HE-INSET-G5
Output	11.6kW
Energy Efficiency Class	A
Width	548mm
Height	590mm
Depth	578mm
Log length	305mm

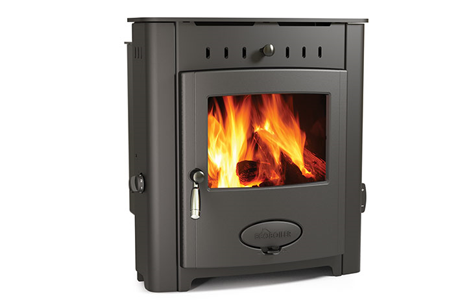

Ecoboiler 16 HE Inset

Code	EB16HE-INSET-G5
Output	16.1kW
Energy Efficiency Class	A
Width	626mm
Height	636mm
Depth	544mm
Log length	405mm

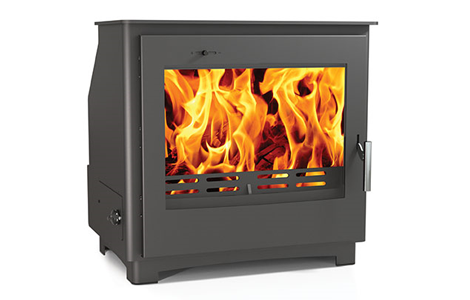

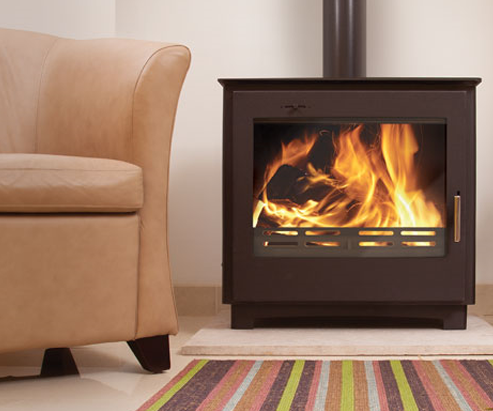

Ecoboiler Wood

Details

Our dedicated wood boiler features one of our biggest viewing glasses, providing an unhindered view of its glowing fire.

Featuring a modern design, clean-cut lines and a sleek handle, the wood boiler is certain to become the centre point of any room in an energy-conscious home.

Features

7 year guarantee
Easily accessible water sensor for trouble-free maintenance
Preheated airwash system for clean glass
Burns wood
Compact space-saving design
Discreetly positioned thermostatic control fitted as standard
Flue Exhaust Diversion system to improve performance
Large fire viewing window
Primary and secondary burn to improve efficiency
Suitable for installation in an indirect/open-vented or sealed central heating system
Up to 3 Bar operating pressure
Integral cooling loop
Sloping 45 degree 6" flue outlet
Eligible for 5% VAT
Direct air supply compatible
Height adjusting legs as standard

Ecoboiler Wood 12

Code	EBW12-G2
Output	11.8kW
Energy Efficiency Class	A
Width	700mm
Height	668mm
Depth	605mm
Log length	500mm
